Basic Info.
Model NO.
D26
Material
Aluminium Alloy
Type
Electric Wheelchair
Overall Size
1100*600*990 mm
Fold Size
600*330*820 mm
Load Capacity
160 Kg
Motor
24V 250W * 2PCS
Frame Material
Aluminium Alloy
Seat Depth
430 mm
Seat Width
430 mm
Net Wight
27 Kg
Speed
0-6 Km/H
Battery
24V 6ah * 2PCS Lithium
Charging Time
6-8h
Gradient
0-8 Degree
Driving Range
20 Km
Color
Silver
Certificates
ISO9001, ISO13485, CE, FDA
Transport Package
7-Layer Carton
Specification
compact portable folding power wheelchair
Trademark
JBH
Origin
China
HS Code
8713900000
Production Capacity
5000 Sets/Month
Product Description
Rehabilitation Treatment Lithium Battery Folding Electric Wheelchair Of The Disabled
We are enterprise with integration of R&D , manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, electric bed,manual wheelchair and electric standing wheelchair.
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
" JBH" as the registered trademark renowned for " Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
" JBH" as the registered trademark renowned for " Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!
Welcome for inquiring/visiting! We are right here for you!
Key features of this folding electric wheelchair:
1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 30kg.
3.Small volume after folding, only 0.14 cbm.
4. Frame material: aluminum alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7. Bigger rear tires, stronger gradeability.
Specifications of this folding electric wheelchair:
Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.
Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.
Q3: Can I Use It In Different Countries?
Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.
Q4: Should I Need To Assemble After Unpacking?
After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.
Q5: Is It Possible To Switch Manually By Electric Mode?
Yes, you can adjust the red handle on the motor position to switch the manual electric mode.
Q6: Can The Controller Lever Switch Between Left And Right?
Yes, the joystick can be switched left and right.
Q7: What Is The Production Process Of The Wheelchair?
Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.
Q8: What Are The Optional Parts & Accessories?
Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone holder, headrest etc.
Q9: Can Product Quality Issues Be Returned?
At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.
1. 5-seconds folding or unfolding, easy to carry as a luggage on plane or on train.
2. Very light weight, only 30kg.
3.Small volume after folding, only 0.14 cbm.
4. Frame material: aluminum alloy.
5. Certificates: CE;FDA;ISO9001; ISO13485.
6. High efficiency brushless hub motor
7. Bigger rear tires, stronger gradeability.
Specifications of this folding electric wheelchair:
| Product Name: | Hot sell reliable quality foldable adult use electric wheelchair |
| Item No.: | D26 |
| Unfolded dimension: | 1100x 600 x 990mm |
| Folded dimension: | 600x 330 x 820mm |
| Motor: | 250W X 2 brushless motor |
| Battery: | lithium battery (6AH DC 24V)x2pcs |

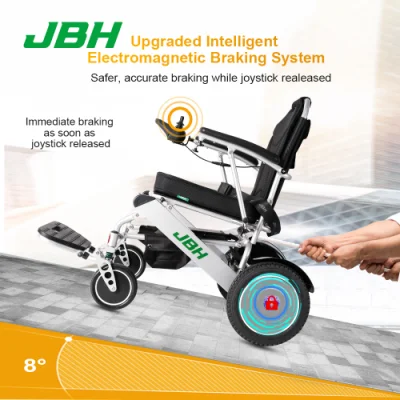

| Braking system: | Intelligent type electromagnetic brake |
| Charging time: | 6 hours |
| Max Speed : | 6 km/h |
| Driving Range: | 20km |
| Turning radius: | 800mm |
| Max Loading : | 160 kg |
| Climbing Slope: | 8° |
| Front tires: | 8"x2pcs PU |
| Rear tires: | 12.5"x2pcs PU |
| Seat depth: | 420mm |
| Seat width: | 500mm |
| Seat Height: | 520mm |
| N.W.: | 27kg |
| Package: | 1 set/carton |
| carton size: | 640x370x870mm |
JBH Group, founded in March 2013, is a global leader in portable electric wheelchairs. We are committed to solving the problem of travel difficulties for the global aging population and limited mobility persons. The company focuses on the development and production of portable intelligent electric wheelchairs, portable electric folding scooter, sports wheelchairs, intelligent hospital beds and various mobility aids.
JBH Medical occupies an area of 230 acres (160,000 square meters), has more than 60,000 square meters of standard workshops, and has mold, processing, welding, high-frequency, injection, painting, assembly and 100,000-level purification workshops. At present, the company has approximately 450 employees, operates in 87 countries and serves approximately 300,000 elderly users worldwide.
Q1: Can I Take The Plane? What Documentation Is Required?
Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.
Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.
Q3: Can I Use It In Different Countries?
Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.
Q4: Should I Need To Assemble After Unpacking?
After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.
Q5: Is It Possible To Switch Manually By Electric Mode?
Yes, you can adjust the red handle on the motor position to switch the manual electric mode.
Q6: Can The Controller Lever Switch Between Left And Right?
Yes, the joystick can be switched left and right.
Q7: What Is The Production Process Of The Wheelchair?
Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.
Q8: What Are The Optional Parts & Accessories?
Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone holder, headrest etc.
Q9: Can Product Quality Issues Be Returned?
At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.
